DEIF FAS-113DG同步控制器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
DEIF FAS-113DG 同步控制器 是由 DEIF（丹麥電力工業電子公司）生產的一款高性能同步控制器，主要用于同步發電機組與電網或其他發電機組的并聯運行。該設備適用于多個發電機組并聯運行的場景，尤其是在需要精確控制電力系統穩定性、并網及并機過程中的電流、頻率和電壓等參數的應用中。
主要特點與功能：
精確同步控制：
- DEIF FAS-113DG 具有精確的同步控制功能，可以確保多個發電機組或發電機與電網的電壓、頻率和相位完全同步，從而避免并網過程中的電力沖擊和系統故障。
頻率與電壓監控：
- 控制器能夠持續監測發電機和電網的頻率及電壓。當發電機的輸出電壓與電網電壓或其他發電機組的電壓差異過大時，控制器會啟動保護機制，防止并網事故。
并網與分網功能：
- FAS-113DG 支持自動并網和分網功能，能夠在不需要人工干預的情況下，自動檢測電網的條件，并控制發電機組與電網的平穩連接或斷開。
自動調節功率因數：
- 控制器能夠自動調節功率因數，以確保發電機組輸出的電能高效并穩定地傳送到電網。這樣不僅提高了能源使用效率，還降低了由于功率不平衡帶來的系統負荷。
并聯發電機組協調：
- 在多個發電機組并聯運行的場景中，FAS-113DG 可以協調各個發電機組的輸出負載，確保負載分配合理且平衡，有效避免因負載不均導致的設備損耗和故障。
多種保護功能：
- 該控制器具備多種保護功能，如頻率過高、頻率過低、電壓過高、電壓過低等保護措施，可以在發電機組運行不正常時自動切斷連接，保護發電機和電網的安全。
- 另外，它還具有短路保護、過載保護和過溫保護等功能。
用戶友好的界面：
- FAS-113DG 配備有直觀的顯示界面，方便用戶進行操作、監控和設置?？刂破鞯娘@示屏可以顯示當前的電壓、頻率、功率等關鍵參數，并且可以通過觸摸屏或按鈕進行調節和配置。
支持遠程監控與操作：
- 該同步控制器支持通過 Modbus RTU、Ethernet、CAN 等通信協議進行遠程監控和操作。用戶可以通過遠程設備監控多個發電機組的狀態，進行配置或故障排查。
高可靠性與抗干擾性：
- 作為工業級產品，FAS-113DG 具有極高的可靠性和抗干擾能力，適應惡劣的工業環境，能夠在極端的溫度、濕度、電磁干擾等條件下穩定運行。
廣泛的應用場景：
- 該同步控制器廣泛應用于多個發電機組并網、微電網、船舶電力系統、油氣平臺以及工業廠區電力系統等領域。尤其在需要高精度控制和高可靠性要求的場合，FAS-113DG 是非常理想的選擇。
技術規格（典型）：
- 輸入電壓：通常為 24V DC 或 110V AC/220V AC（依據安裝需求）
- 控制模式：同步控制，支持并網與分網
- 通訊接口：
- 支持 Modbus RTU、Ethernet、CAN 等協議
- 支持 遠程監控與調控
- 頻率調節范圍：根據具體應用，支持微調頻率范圍
- 電壓調節范圍：支持輸出電壓的微調，以確保與電網電壓匹配
- 保護功能：
- 過載、短路、過壓、欠壓保護
- 頻率過高、頻率過低保護
- 短期電流保護
- 顯示與操作界面：
- LCD顯示屏，用于顯示電壓、頻率、功率等參數
- 可通過按鈕或觸摸屏進行操作和配置
- 工作環境溫度：-20°C 至 +60°C
- 安裝方式：可嵌入式或掛壁式安裝，適合工業控制柜
- 尺寸：緊湊型設計，適合標準控制面板或機架安裝
英文資料：
The DEIF FAS-113DG synchronous controller is a high-performance synchronous controller produced by DEIF (Danish Electric Power Industry Electronics Company), mainly used for parallel operation of synchronous generator sets with the grid or other generator sets. This device is suitable for scenarios where multiple generator sets operate in parallel, especially in applications that require precise control of power system stability, current, frequency, and voltage parameters during grid connection and parallel operation.
Main features and functions:
Precise synchronization control:
DEIF FAS-113DG has precise synchronization control function, which can ensure that multiple generator sets or generators are completely synchronized with the voltage, frequency, and phase of the grid, thereby avoiding power shocks and system failures during grid connection.
Frequency and voltage monitoring:
The controller can continuously monitor the frequency and voltage of the generator and the power grid. When the output voltage of the generator differs significantly from the grid voltage or the voltage of other generator units, the controller will activate a protection mechanism to prevent grid connection accidents.
Grid connection and distribution functions:
FAS-113DG supports automatic grid connection and disconnection functions, which can automatically detect the conditions of the power grid without manual intervention and control the smooth connection or disconnection of the generator set and the power grid.
Automatic adjustment of power factor:
The controller can automatically adjust the power factor to ensure that the electrical energy output by the generator set is efficiently and stably transmitted to the grid. This not only improves energy efficiency, but also reduces the system load caused by power imbalance.
Coordination of parallel generator sets:
In the scenario of multiple generator sets operating in parallel, FAS-113DG can coordinate the output loads of each generator set, ensure reasonable and balanced load distribution, and effectively avoid equipment losses and failures caused by uneven loads.
Multiple protection functions:
This controller has multiple protection functions, such as protection measures for high frequency, low frequency, high voltage, low voltage, etc. It can automatically cut off the connection when the generator set is not running normally, protecting the safety of the generator and the power grid.
In addition, it also has functions such as short circuit protection, overload protection, and over temperature protection.
User friendly interface:
FAS-113DG is equipped with an intuitive display interface, making it convenient for users to operate, monitor, and set up. The display screen of the controller can display key parameters such as current voltage, frequency, power, etc., and can be adjusted and configured through touch screen or buttons.
Support remote monitoring and operation:
This synchronous controller supports remote monitoring and operation through communication protocols such as Modbus RTU, Ethernet, CAN, etc. Users can monitor the status of multiple generator sets through remote devices for configuration or troubleshooting.
High reliability and anti-interference:
As an industrial grade product, FAS-113DG has extremely high reliability and anti-interference ability, adapts to harsh industrial environments, and can operate stably under extreme conditions such as temperature, humidity, and electromagnetic interference.
Wide range of application scenarios:
This synchronous controller is widely used in the fields of multiple generator sets connected to the grid, microgrids, ship power systems, oil and gas platforms, and industrial plant power systems. Especially in situations where high-precision control and high reliability are required, FAS-113DG is an ideal choice.
Technical specifications (typical):
Input voltage: typically 24V DC or 110V AC/220V AC (depending on installation requirements)
Control mode: synchronous control, supporting grid connection and distribution
Communication interface:
Supports protocols such as Modbus RTU, Ethernet, CAN, etc
Support remote monitoring and control
Frequency adjustment range: Depending on the specific application, it supports fine-tuning the frequency range
Voltage regulation range: supports fine adjustment of output voltage to ensure matching with grid voltage
Protection function:
Overload, short circuit, overvoltage, undervoltage protection
High frequency and low frequency protection
Short term current protection
Display and operation interface:
LCD display screen, used to display parameters such as voltage, frequency, power, etc
Can be operated and configured through buttons or touch screen
Working environment temperature: -20 ° C to+60 ° C
Installation method: Can be embedded or wall mounted, suitable for industrial control cabinets
Size: Compact design, suitable for standard control panel or rack installation

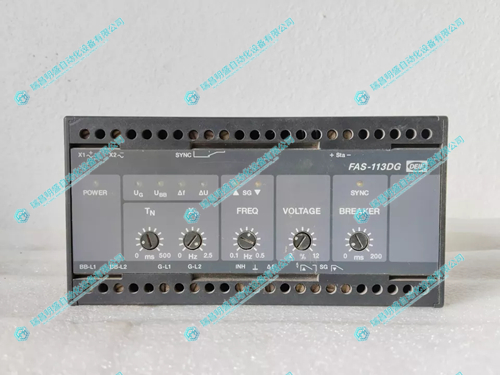

2.產 品 展 示
